What can the Mounting Calculator compute?

Enter the number of panels, panel size, roof type, and rail length, and the system calculates Rail / End Clamp / Mid Clamp / L-Feet or Tile Hook / Grounding Clip / Grounding Lug / Rail Splice. Free, no login required.

Does Antai hold up in Thailand's climate?

Antai is rated for wind loads up to 60 m/s and snow loads up to 5400 Pa. It is certified to UL 2703, IEC 61730, and ASTM B117 (1000-hour salt spray) — well suited to Thailand's climate.

What materials does Antai use?

Rails and L-Feet are anodized aluminium 6005-T6. Bolts and hooks are Stainless Steel 304 — salt and rust resistant, with a service life of 25+ years.

Which model for metal sheet vs tile roofs?

Metal sheet / Klip-Lok: use L-Feet H85 or H165, or L-Feet for Klip-Lok. Tile roofs: use Tile Hook, which slides under the tiles and fastens into the roof frame.

// AUTHORIZED DISTRIBUTOR IN THAILAND

Antai Solar Built to Hold. Mounting Systems

Name: Antai Solar Mounting Systems
Brand: Antai Solar
Availability: InStock
Rating: 4.8 (76 reviews)

Complete solar panel mounting system — Rail 2100/4200/4800mm, Mid/End Clamp, L-Feet, Tile Hook, Hanger Bolt · UL 2703 certified · 6005-T6 aluminium + Stainless 304

Free Calculator Request Quote

UL 2703 Certified

50.1 GW+ Installed

10-Year Warranty

// XIAMEN · SINCE 2006

Antai Solar · 50.1 GW Installed Globally

Rail 4800mm

Aluminium 6005-T6

12 Items

Complete Set

Why Antai

Reasons to Choose Antai Mounting

Installed Worldwide

50.1 GW

5 Continents Worldwide

Japan · Australia · Chile · Mexico · Southeast Asia — #1 market leader in multiple countries

UL 2703 + IEC 61730 Certified

Tested for 60 m/s wind load + 5400 Pa snow load + sea salt (ISO 9227) — built for Thailand's climate

Material

AL 6005-T6 + SUS 304

Aerospace-grade aluminium + Stainless Steel 304 — salt and rust resistant for 25+ years

Installer Voice

"I've used Antai Rail + Clamp for years — never had any issues with bent posts or rust. Excellent value."

Noppadol S.

Installation Contractor

Lineup

12 Items

Rail · Clamp · L-Feet · Hook

Rail Length

4800 mm

+ 2100 + 4200mm options

Heritage

2006

Founded in Xiamen · 800+ employees

Components

Choose the Right Component

4 Main Categories — Rail · Clamp · L-Feet · Roof Hook. Click to view specs for each category.

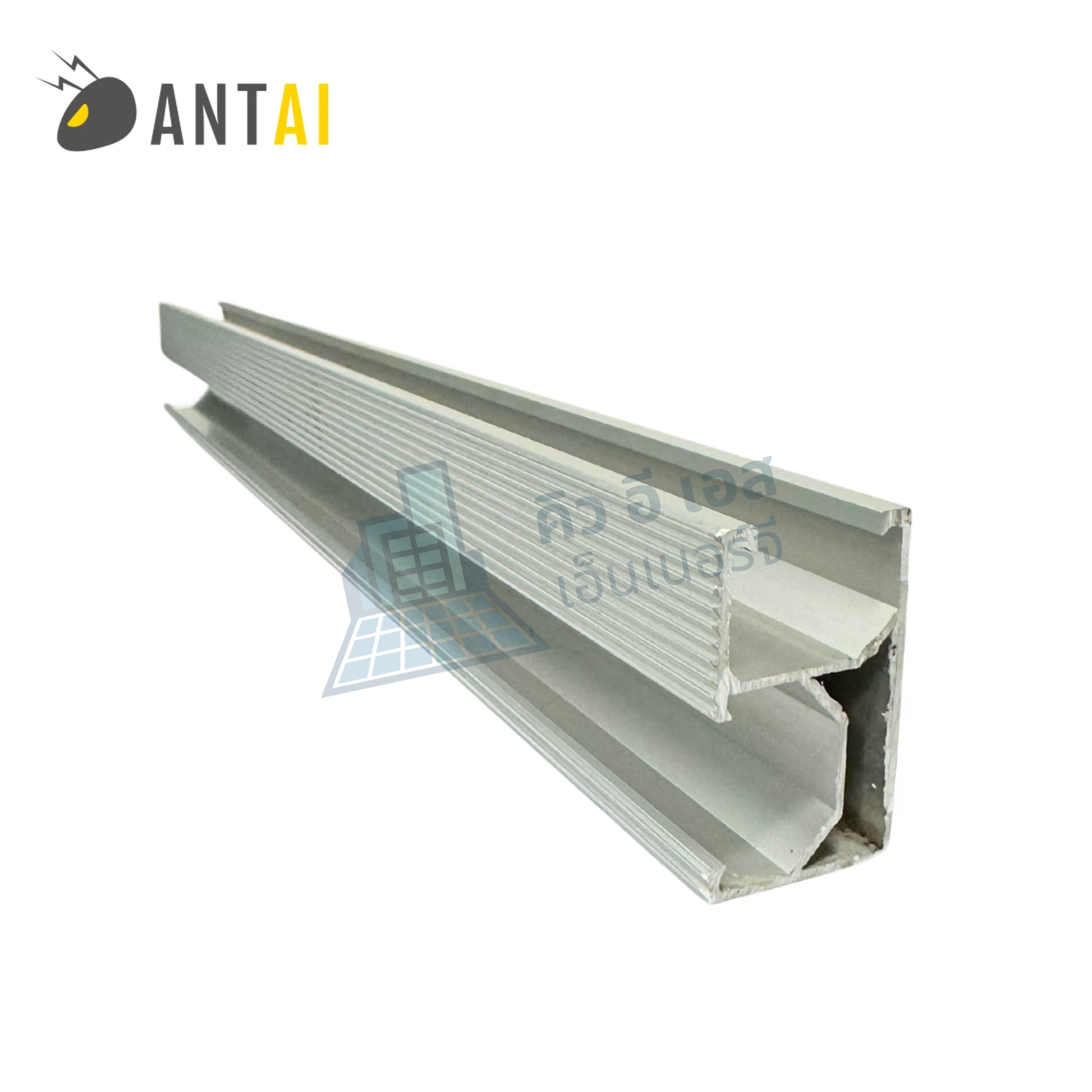

RAIL · ALUMINIUM 6005-T6

Main Rail — The Backbone of the System

Aluminium rails available in 2100 / 4200 / 4800mm — high wind-load capacity, lightweight, easy to ship and install, engineered specifically for Thailand's climate.

4800 mm

Max Length

AL 6005-T6

Material

60 m/s

Wind Load

Splice

Extension Joint

Contact for Pricing /piece

View Rail Products

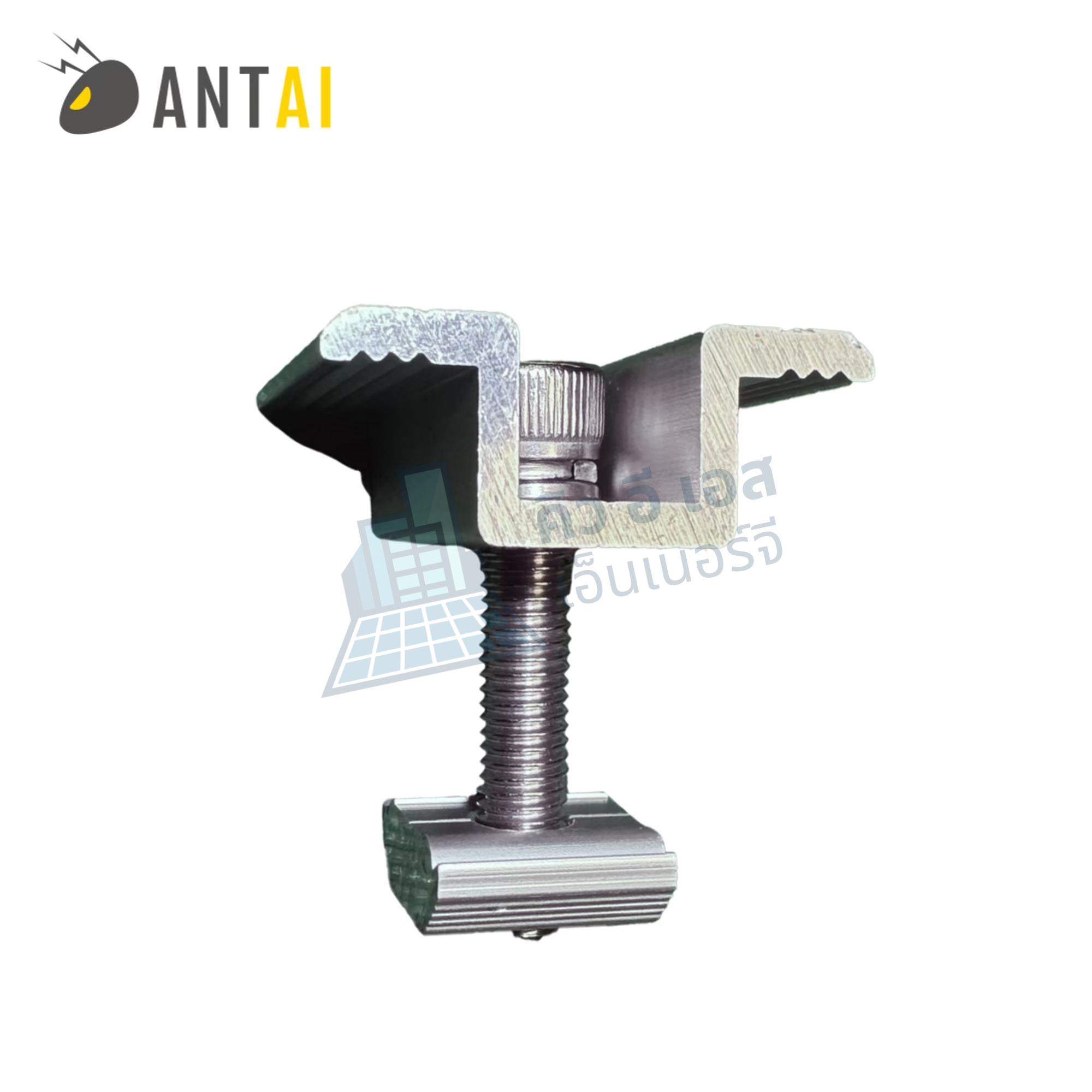

CLAMP · MID + END

Module Clamps — Mid + End Clamp

Mid Clamp secures panels between modules · End Clamp secures the outer edge of each row — fits panel thicknesses of 30-40mm, adjustable for all panel brands.

30-40 mm

Panel Thickness

SUS 304

Bolts

Grounding

Built-in

UL 2703

Certified

Contact for Pricing /piece

View Clamp Products

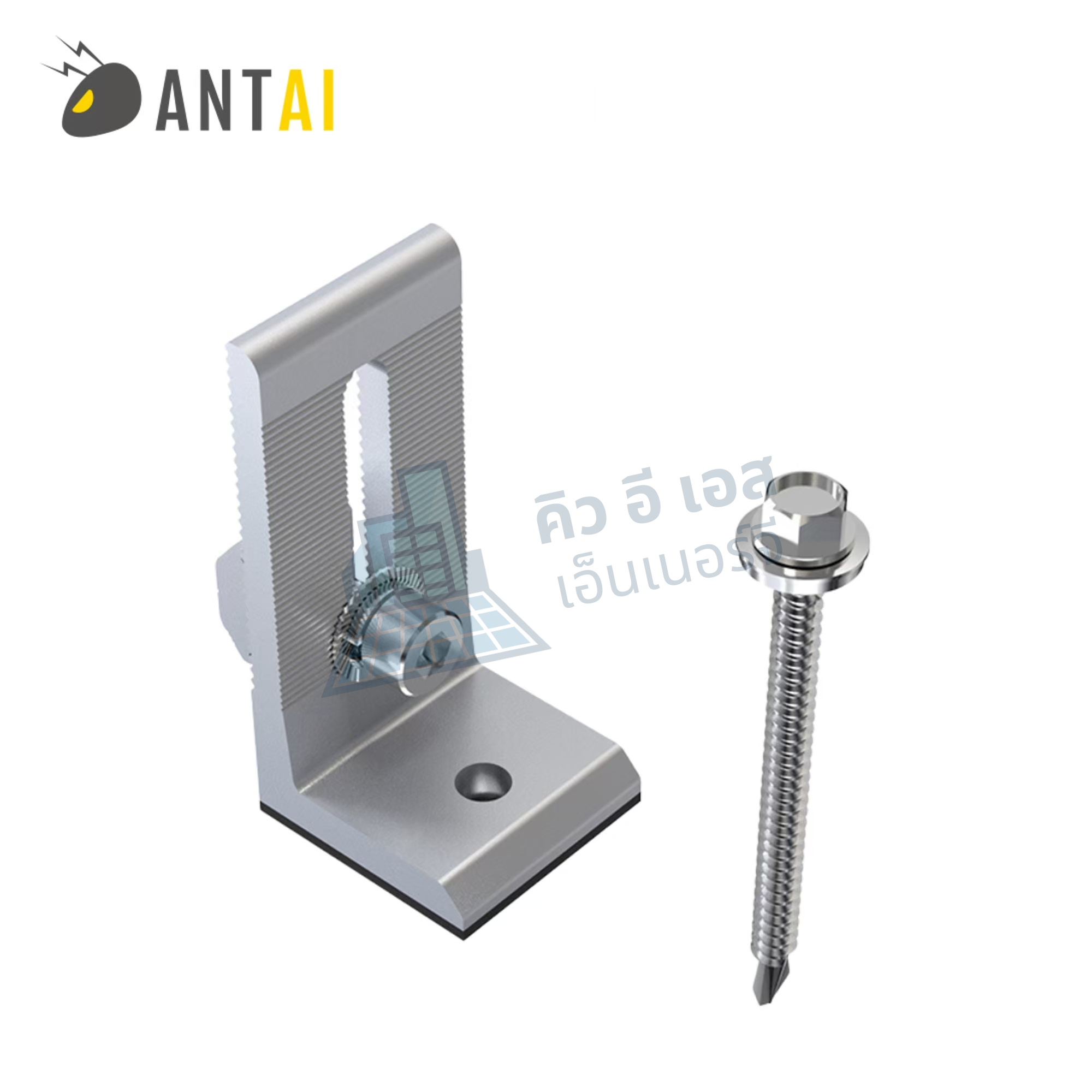

L-FEET · ROOF MOUNT

L-Feet — 85 / 165 / Klip-Lok Variants

L-shaped foot connecting the rail to the roof — three variants available: H=85mm (low-profile roofs), H=165mm (adjustable height), and Klip-Lok (metal sheet roofs).

85/165 mm

Height Options

AL 6005

Aluminium

Klip-Lok

Metal Sheet

SUS Bolts

Stainless

Contact for Pricing /piece

View L-Feet Products

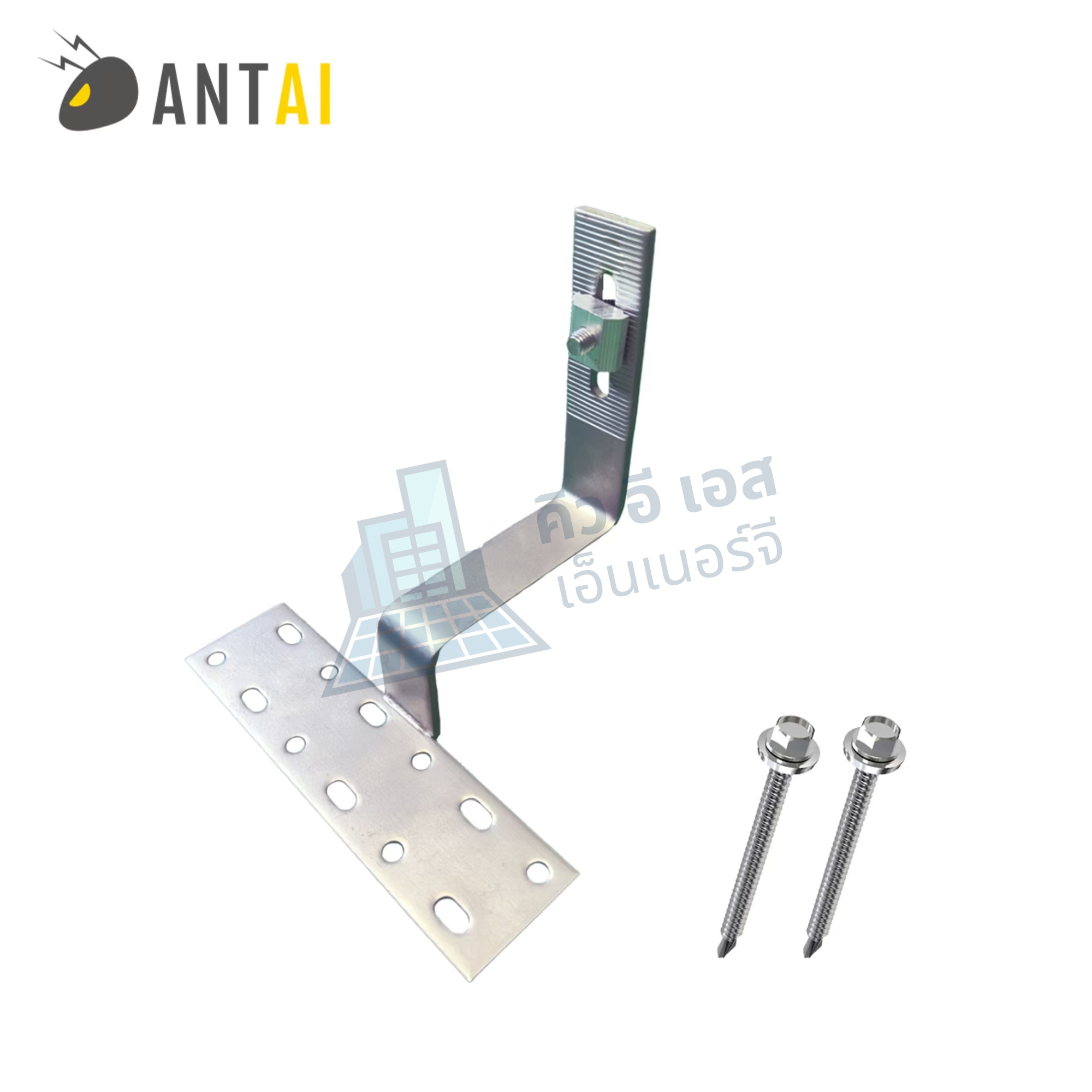

HOOK · TILE + HANGER BOLT

Roof Hooks — Tile Hook + Hanger Bolt

Tile Hook slides under roof tiles · Hanger Bolt fastens into wood or steel rafters — choose based on your roof type.

Tile Hook

Tile Roof

Hanger Bolt

Rafter Mount

SUS 304

Rust Resistant

Multi-Type

Multiple Tile Types

Contact for Pricing /piece

View Hook Products

// FREE MOUNTING CALCULATOR

Calculate Your Mounting Components in 30 Seconds

Enter the number of panels and roof type — the system will calculate Rail / Clamp / L-Feet / Hook quantities with a ready-to-order parts list.

Your System Details

Panel Layout (Rows × Panels per Row) Add multiple groups — for example, roof side A and side B separately.

Total: 0 panels

Panel Width (mm) Short side

Panel Length (mm) Long side

Panel Orientation

Roof Type

Rail Length

Required Components

Fill in the details on the left, then click "Calculate Components".

How Mounting Components Are Calculated (Formulas)

Rail: 2 rails per row of panels; total length = row width
End Clamp: 4 per row (outer edge on both sides × 2 rails)
Mid Clamp: 2 × (panels per row − 1) per row (between panels)
Rail Splice: used when joining multiple rails in a single row

L-Feet / Tile Hook: every 1.2 metres along the rail
Grounding Clip: equal to total clamp count (End + Mid)
Grounding Lug: 2 per row (for connecting the ground wire to earth)

Figures are estimates. Allow 5-10% spare parts and consult a QES Energy engineer for accurate, site-specific calculations (wind load / roof pitch).

Customer Reviews

What Real Customers Say

4.8

★★★★★

From 76+ reviews

Verified Customer

★★★★★

"I've used Antai Rail + Clamp for years. Easy to install, strong, handles storms well, and zero rust issues."

Noppadol S.

Solar Installation Contractor

Verified Customer

★★★★★

"QES's mounting calculator is a huge help — I never order too much or too little. Antai is genuine and well-priced."

Somsak J.

Contracting Business Owner

Verified Customer

★★★★★

"Installed on a tile roof using Antai's Tile Hook — slides perfectly under the tiles, strong, and no leaks at all."

Piya N.

Homeowner

Verified Customer

FAQ

Frequently Asked Questions

QES Energy is the authorized distributor of Antai Solar Mounting in Thailand. We stock the full lineup — Rail 2100/4200/4800mm, Mid/End Clamp, L-Feet, Tile Hook, Hanger Bolt, Grounding Clip/Lug — all 100% genuine. Contact us on Line @qesenergy.

Enter the number of panels, panel size, roof type, and rail length — the calculator will give you a complete bill of materials including Rail / End Clamp / Mid Clamp / L-Feet or Tile Hook / Grounding Clip / Grounding Lug / Rail Splice, ready to order. Free, no login required.

Antai mounting is rated for wind loads up to 60 m/s and snow loads up to 5400 Pa — certified to UL 2703, IEC 61730, and ASTM B117 (1000-hour salt spray test). It's well suited to Thailand's combination of rain, sun, and salt air.

Rails and L-Feet are anodized aluminium 6005-T6 (aerospace grade). Bolts and hooks are Stainless Steel 304 — salt and rust resistant, suitable for coastal installations, with a service life of 25+ years.

Metal sheet / Klip-Lok: use L-Feet H85 (low profile) or L-Feet H165 (adjustable height) · Tile roofs: use Tile Hook (slides under the tiles) · Klip-Lok metal panels: use the L-Feet for Klip-Lok.
